GTWY1 SINGLE MAN PUSH-AROUND VERTICAL LIFTS OEM/ODM

GTWY1 SINGLE MAN PUSH-AROUND VERTICAL LIFTS
  • GTWY1 SINGLE MAN PUSH-AROUND VERTICAL LIFTS
  • GTWY1 SINGLE MAN PUSH-AROUND VERTICAL LIFTS
Push Around Vertical Lifts-One Man Lifts

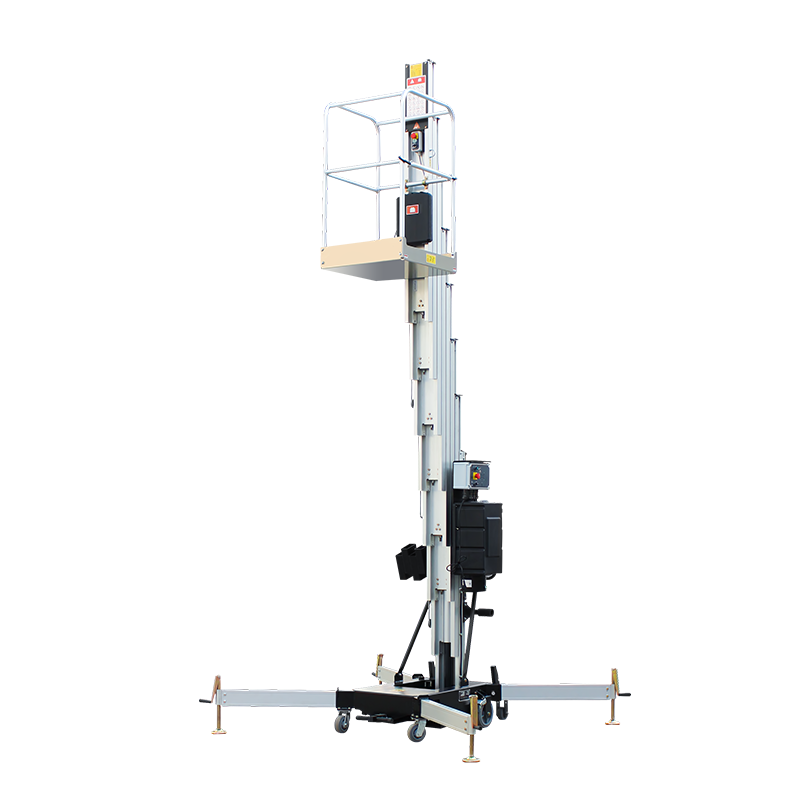

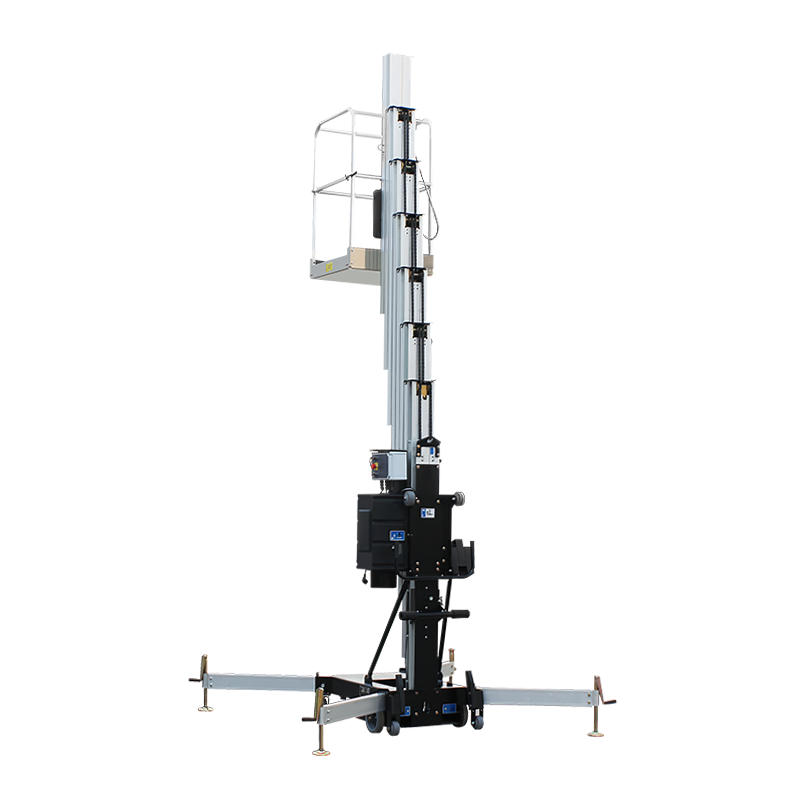

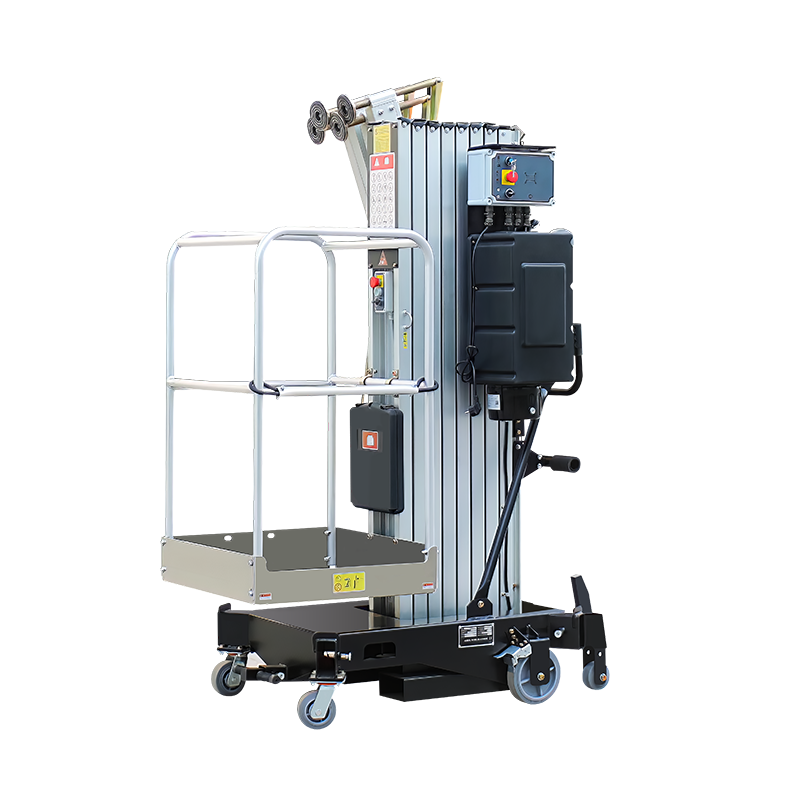

GTWY1 SINGLE MAN PUSH-AROUND VERTICAL LIFTS

Engineered for reliability and productivity in demanding work environments, the REES Push Around Single Mast Vertical Lift combines advanced functionality with robust safety features. The Outrigger Interlock System ensures platform stability before elevation, while the Self-Leveling Chain System maintains balance and consistent tension during operation.

Operational safety is enhanced through the Deadman Switch, which requires constant activation for movement, and the Emergency Stop Button for immediate shutdown. The Emergency Lowering System provides reliable descent capability in case of power interruption, supported by a manual backup. Additional features like the AC Power on Platform enable convenient use of tools at height, and the Forklift Pocket simplifies safe transport and loading onto pickup trucks.

Practical design elements such as the Leveling Bubble for ground adjustment and the Cylinder Holding Valve for mechanical locking further reinforce the platform’s stability and safety. Anti-Tip Wheels automatically engage on uneven terrain to prevent tipping, adding an extra layer of protection during mobile operation. Every component is designed to deliver confidence and control—elevating not just people, but performance.

Key Advantages:

Outrigger Interlock – Ensures platform stability before elevation

Self-Leveling Chain System – Maintains consistent tension and balance during operation

Deadman Switch – Requires continuous activation for safe, controlled movement

AC Power on Platform – Enables convenient use of electric tools at height

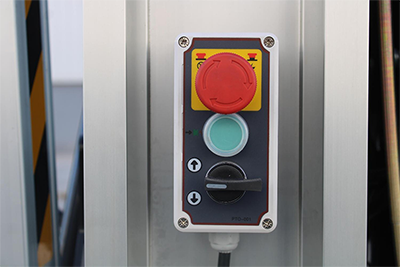

Emergency Stop Button – Provides immediate system shutdown in critical situations

Easily Loading to Pickup Truck – Designed for quick and safe transport via forklift pockets

Emergency Lowering System – Ensures safe descent even during power loss

Leveling Bubble – Allows easy ground adjustment for stable positioning

Forklift Pocket – Simplifies loading and transport with standard forklifts

Cylinder Holding Valve – Mechanically locks the platform to prevent unintended movement

Anti-Tip Wheels – Automatically engage on uneven ground to prevent tipping

E-mail: [email protected]
Play Video Contact Us

  • The REES GTWY1-5 push around one man lift boasts ease of use, convenience and flexibility thanks to its lightweight maneuverability and durable design. The is ideal for use in a variety of rental, light-duty construction and maintenance applications.

    GTWY1

     Push Around Single Mast Vertical Lift

    Model

    GTWY1-5

    Platform Dimension

    Max. Working Height

    6.7m

    Max. Platform Height

    4.7m

    Loading Capacity

    150kg

    Occupants

    1

    Platform Dimension

    0.67m x 0.66m

    Overall Dimension

    Overall Height

    1.99m

    Overall Width

    0.76m

    Overall Length

    1.26m

    Outrigger coverage

    1.9m x 1.8m

    Weight

    AC

    330kg

    DC

    380kg

    Power

    AC

    220V/110V

    AC Motor

    1.5KW

    DC

    12V

    DC motor

    1.5KW

    Charger

    12V/15A

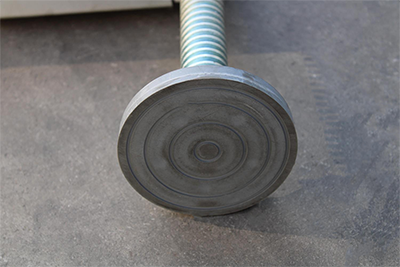

Outrigger Interlock

This integrated safety mechanism prevents the platform from elevating unless all outriggers are properly deployed and locked. The system continuously monitors outrigger position and ground contact pressure, ensuring maximum stability during operation. It eliminates human error in setup procedures while providing visual and audible confirmation when conditions are safe for elevation.

Easily Loading to Pickup Truck

Engineered with integrated forklift pockets and balanced weight distribution, the platform can be quickly loaded onto standard pickup trucks or trailers. The compact design when lowered allows transport without special permits, while tie-down points ensure secure transit. This mobility feature maximizes equipment utilization across multiple job sites.

Leveling Sensor – The platform is equipped with an advanced leveling sensor system that prevents operation unless the unit is properly positioned on level ground. The sensor provides visual feedback through a red/green indicator light—only when the sensor detects adequate leveling does the light turn green, allowing the platform to activate safely. This automated check eliminates setup errors and ensures operational stability throughout use.

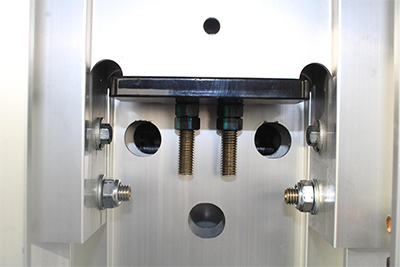

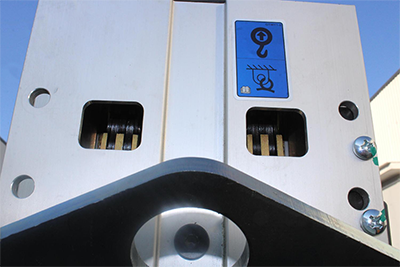

Self-Leveling Chain System
Through precision hydraulic synchronization, this system automatically maintains equal tension across all lifting chains throughout the platform's elevation range. The mechanism compensates for minor wear and elongation, ensuring consistently smooth operation and preventing platform tilt. This technology extends chain service life while reducing maintenance frequency and costs.

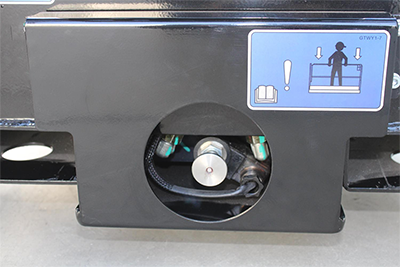

Forklift Pocket
Standardized forklift pockets located at the machine's balance points allow easy handling with any standard industrial forklift. The reinforced steel construction withstands repeated lifting cycles while maintaining structural integrity. This design eliminates the need for specialized lifting equipment, enhancing equipment mobility between work areas.

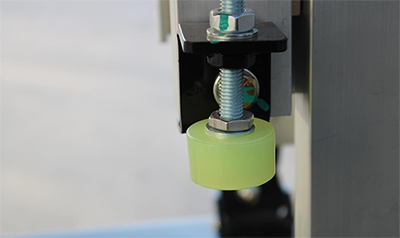

Anti-Tip Wheels – The platform features automatic anti-tip wheel assemblies that activate when moving near edges or uneven ground. The system detects height differences and engages a locking mechanism to prevent accidental tipping. With a three-point stabilization design, it maintains secure support on slopes or soft surfaces. Built-in pressure sensors monitor ground contact in real time and display safety status on the control panel.


This integrated safety mechanism prevents the platform from elevating unless all outriggers are properly deployed and locked. The system continuously monitors outrigger position and ground contact pressure, ensuring maximum stability during operation. It eliminates human error in setup procedures while providing visual and audible confirmation when conditions are safe for elevation.


Easily Loading to Pickup Truck

Engineered with integrated forklift pockets and balanced weight distribution, the platform can be quickly loaded onto standard pickup trucks or trailers. The compact design when lowered allows transport without special permits, while tie-down points ensure secure transit. This mobility feature maximizes equipment utilization across multiple job sites.


Leveling Sensor – The platform is equipped with an advanced leveling sensor system that prevents operation unless the unit is properly positioned on level ground. The sensor provides visual feedback through a red/green indicator light—only when the sensor detects adequate leveling does the light turn green, allowing the platform to activate safely. This automated check eliminates setup errors and ensures operational stability throughout use.


Self-Leveling Chain System

Through precision hydraulic synchronization, this system automatically maintains equal tension across all lifting chains throughout the platform's elevation range. The mechanism compensates for minor wear and elongation, ensuring consistently smooth operation and preventing platform tilt. This technology extends chain service life while reducing maintenance frequency and costs.


Forklift Pocket

Standardized forklift pockets located at the machine's balance points allow easy handling with any standard industrial forklift. The reinforced steel construction withstands repeated lifting cycles while maintaining structural integrity. This design eliminates the need for specialized lifting equipment, enhancing equipment mobility between work areas.


Anti-Tip Wheels – The platform features automatic anti-tip wheel assemblies that activate when moving near edges or uneven ground. The system detects height differences and engages a locking mechanism to prevent accidental tipping. With a three-point stabilization design, it maintains secure support on slopes or soft surfaces. Built-in pressure sensors monitor ground contact in real time and display safety status on the control panel.
